5-80 Hz Mechanical Vibration Table For Electronic Components Shake Testing

Name: 580 Hz Mechanical Vibration Table For Electronic Components Shake Testing
Brand: Labtone
Price: 1 USD

Wholesale 5-80 Hz Mechanical Vibration Table For Electronic Components Shake Testing from china suppliers

Brand Name : Labtone

Model Number : RV3000

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 15 Sets / Month

Delivery Time : 30-35 Working Days

Packaging Details : International standard wooden case

Acceleration range : 0-11g(peak)

Max. Payload : 50 kg

Table Dimention : 600 x 500 mm

Frequency : 5-80 Hz

Power : AC 220V

Warranty : 12 Month

Contact Now

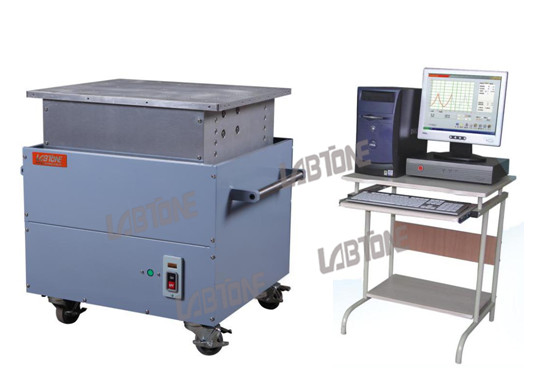

5-80 Hz Mechanical Vibration Table For Electronic Components Shake Testing

Application

Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.

Specifications

Model	RV3000
Table Size (L*W)	600*500mm
Frequency Range	5-80Hz
Amplitude Range	0-3mm p-p
Acceleration Range	0-11G
Max.Payload	50 kg
Control Interface	(compatible interface)IBM PC Serial port Rs232 9P/USB port
Test Method	Fixed frequency.sweep frequency(linear/logarithm),multi-stage random
Waveform	Sine Wave
Vibration Direction	Vertical
Power Supply	AC 220V/50Hz
Size	765525690mm
Weight	250kg

Features

1, Using centrifugal excitation method, low mechanical noise.
2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.

Customer Services

Presales

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

Product Show

5-80 Hz Mechanical Vibration Table For Electronic Components Shake Testing
