MIL-STD Standard Mechanical Shaker Table 1000kg Payload 1.25G Acceleration

Name: MILSTD Standard Mechanical Shaker Table 1000kg Payload 125G Acceleration
Brand: LABTONE
Price: 1 USD

Wholesale MIL-STD Standard Mechanical Shaker Table 1000kg Payload 1.25G Acceleration from china suppliers

Brand Name : LABTONE

Model Number : YST1000

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 30-35 Work Days

Packaging Details : International Plywood Case

Payload : 1000kg

Table Size : 1500 x 1500

Frequency : 2~5Hz(120~300)RPM

Amplitude : 1 inch (25.4MM) fixed

Vibration Pattern : Rotation, 30° unbalance vibration(asynchronous)

Power Supply : AC 380V±10% 50Hz

Contact Now

MIL-STD Standard Mechanical Shaker Table 1000kg Payload 1.25G Accelration

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Features

Precise digital display for the vibration frequency.
Synchronous low noise wide belt drive mechanism.
Guide Rail type fixture for specimen, easy to operate.
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with international test standard.
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Customer Services:

Presales

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

Management idea:

ound on technical research and development, based on integrity, survived on quality, customers satisfied on services.

We hope:

To provide the best solutions rather than selling products

Our vision:

To be the best well-known manufacturer in the industry of environmental and reliable testing-equipment, and win the respect and trust from customers around the world.

Our mission:

To provide the most advanced technology and the most reliable environmental testing equipment to customers.

Core competitiveness:

Profession, Quality, Service, and Innovation

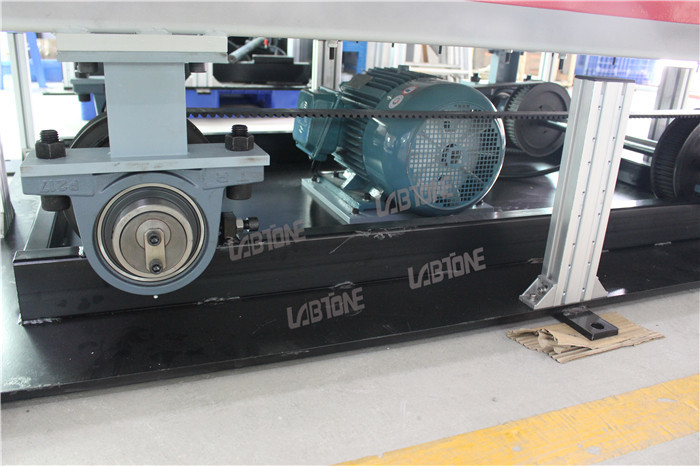

Detailed Pictures:

MIL-STD Standard Mechanical Shaker Table 1000kg Payload 1.25G Acceleration
