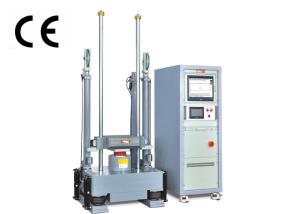

Professional Mechanical Shock Test Equipment For Digital Cameras / Smart Phones

Brand Name : LABTONE

Model Number : SKT50

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Delivery Time : 45 working days

Packaging Details : International wooden case

Supply Ability : 15 Sets / Month

Table Size : 50*60 （CM）

Max. specimen weight : 50 kg

Max. acceleration : Half sine: 600G

Machine Dimension : 130*140*260 (cm)

Controller cabinet Dimension : W55*D50*H80 (cm)

Machine Weight : 2300 (Kg)

Contact Now

Professional Mechanical Shock Test Equipment For Digital Cameras / Smart Phones

Product description

Standard Shock Test System is the most popular model for testing small to mid-size components and systems. The Programmer allows the operator to perform the two shock pulse waveforms commonly used for fragility testing—short duration half sine and long duration trapezoidal shock pulses. The combination of table size, payload capacity, and pulse quality makes this shock test machine the preferred choice for many applications.

Product Features

  1. TouchTest Shock 2 Controller for easy and safe operation
  2. Cast aluminum table design to produce high quality shock pulses
  3. Damage Boundary Programmer for generating 2 msec half sine and long duration trapezoidal shock pulses
  4. Electric hoist lifting and positioning System enables precise drop repeatability
  5. Full range of applications training programs available
  6. Worldwide Customer Service department

Shock testing systems Applications:

· Fragility test of products.

· Shock standard test of products.

· Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.

Shock testing systems Specifications

Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
